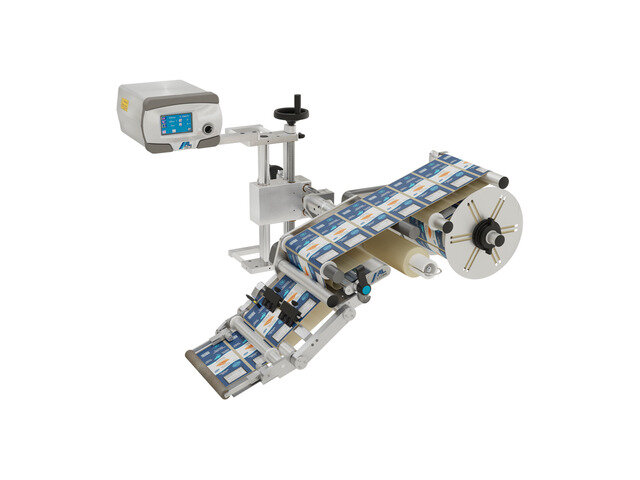

Altech ALritma Labeling Head

Three versions are available: S, M and L.

Control
The label applicator is controlled by a high-performance microprocessor with a touchscreen. The most commonly used parameters are displayed using intuitive icons representing various functions and enabling advanced management, freeing the operator from complex mechanical adjustments and significantly speeding up format changes.

Available functions
Pre-dispensing adjustment in tenths of a mm
Speed adjustment in 0.1 m/min steps
Labeling delay adjustment in mm
Acceleration/deceleration ramp adjustment
Storage of various label formats
Automatic recovery of missing labels
Progressive and countdown piece counter
Automatic removal of double products
Offset register between the product sensor and the label application point
End-of-roll alarm and web break alarm
Output for connection to other systems

Optional accessories
In addition to advanced standard components, ALritma can also be equipped with a range of devices that increase its uptime and performance:
Additional unwinding unit
Unwinding unit with increased diameter (400 mm)
Hot marker
Sensor for transparent labels
Pneumatic applicators
End-of-label-roll monitoring
Device for monitoring correct label application
Non-stop monitoring device for two applicators installed sequentially
Automatic speed control with encoder
Serial interface for connection to a personal computer
