Szczep-pol
Szczep-pol is a leading European supplier of used machines for plastic processing: injection moulding machines and peripherals as well as metal working machines
Poland , 91-212 Łódź, Wersalska 54ARBURG 1500T 3200-1300 e² hybrid injection moulding machine with rotary table, 320 t, 2011
No. 131030
- Type of offer:
- Selling
- Condition:
- Second hand
- Year:
- 2011
- Manufacturer:
- Arburg
- Valid for:
- 55 days
-
- User:
- SZCZEPPOL
- Company:
- Szczep-pol
- Name and surname:
- Arek Szczepański
- Contact:
SZCZEP-POL
Sales of injection moulding machines and peripheral equipment

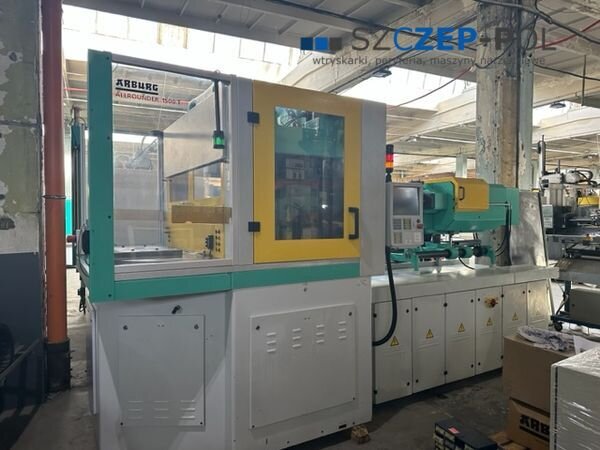

Type: ARBURG 1500T 3200-1300 e² - hybrid machine with rotary table
Year of manufacture: 2011
Injection unit:
Screw diameter: 60 mm
Shot weight: 607 g
Injection pressure: 2000 bar
Shot volume: 664 cm³
Clamping unit:
Clamping force: 320 t
Distance between tie bars: 0 x 0 mm
Maximum table platen dimensions: 1510 mm
Ejector: hydraulic
Clamping system: hydraulic
Control system:
SELOGICA - touchscreen with Polish language option
Additional equipment:
Hybrid machine - energy-efficient, high-speed and very quiet
Operating time: approximately 30,000 hours in automatic mode
Euromap 67
Robot interface
Air valve control
3 hydraulic core pulls
Control of 13 hot-runner zones
Reinforced bimetallic injection unit
Main machine motor - inverter-controlled servo motor
High-precision rotary table driven by a servo motor and controlled by an inverter
Rotary table diameter: 1500 mm
Horizontal injection unit with automatic height adjustment
Shut-off nozzle
Primus sensor - mould pressure monitoring
The injection unit can be converted for vertical operation
Dimensions:
Weight: 16,080 kg
Length x width x height: 4.91 x 2.12 x 4.62 m
Power supply:
Pump/motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request
We are a leading European supplier of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All offered equipment is located in our warehouses in Łódź, Poland.
All injection moulding machines and peripheral equipment are commissioned by our service technicians before sale.
A video of the technical tests of a selected machine can be provided, or customers may attend live technical trials at our company in Łódź.
Leasing is available. At the customer's request, we can assist with a simplified leasing arrangement through our partner leasing companies.
Free training in the operation of the selected machine.
Free loading of the equipment after sale.
