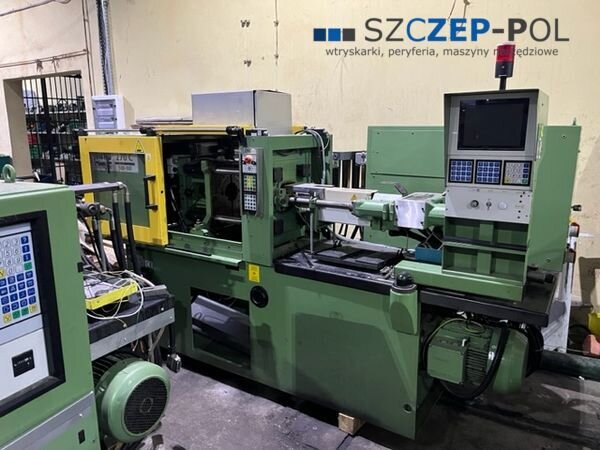

Arburg 270C 500-100 - 50 tonnes, 1998

SZCZEP-POL
Sales of injection moulding machines and peripheral equipment
Type: Arburg 270C 500-100
Year of manufacture: 1998

Description:
Injection unit:
Screw diameter: 20 mm
Shot weight: 26 g
Injection pressure: 2500 bar
Injection volume: 31 cm³

Clamping unit:
Clamping force: 50 t
Distance between tie bars: 270 x 270 mm
Maximum platen dimensions: 446 x 446 mm
Ejector: hydraulic
Clamping system: hydraulic

Control system:
SELOGICA - with Polish-language option

Additional equipment:
Operating hours: approximately 50,000 h
Euromap 12
Robot interface
1 hydraulic core pull
Hot runner control
Reinforced bimetallic injection unit - resistant to abrasion and corrosion
Additional remote-control panel
The machine has been serviced by an authorised Arburg service centre

Dimensions:
Weight: 2,200 kg
Length x width x height: 3.42 x 1.48 x 1.99 m

Power:
Pump/motor: 15 kW
Heaters: 6.3 kW
Total power: 21.3 kW

Price: on request

We are one of Europe's leading suppliers of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is located in our warehouses in Łódź.
All injection moulding machines and peripheral equipment are commissioned by our service technicians before sale.
A video of the technical tests of the selected machine can be provided, or customers may participate in live technical trials at our company in Łódź.

Leasing is available. At the customer's request, we can assist with arranging leasing through our partner leasing companies using a simplified procedure.
Free of charge: training in the operation of the selected machine
Free of charge: loading of the equipment after sale
