Poland , 91-212 Łódź, Wersalska 54Arburg 420C 1000-290 e² injection moulding machine, 100 t, 2017
No. 140327
- Type of offer:
- Selling
- Condition:
- Second hand
- Year:
- 2017
- Manufacturer:
- Arburg
- Valid for:
- 55 days
-
- User:
- SZCZEPPOL
- Company:
- Szczep-pol
- Name and surname:
- Arek Szczepański
- Contact:
SZCZEP-POL
Sales of injection moulding machines and peripheral equipment

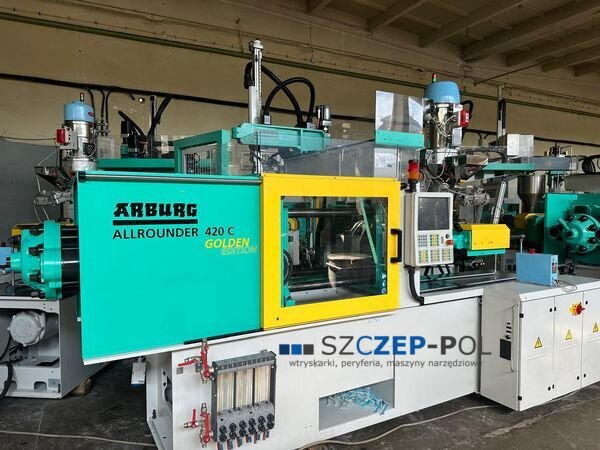

Type: Arburg 420C 1000-290 e²
Version: hybrid machine, production line with an Arburg Multilift Select robot
Year of manufacture: 2017
Location: Łódź, Poland
Injection unit:
Screw diameter: 30 mm
Shot weight: 97 g
Injection pressure: 2500 bar
Shot volume: 106 cm³
Clamping unit:
Clamping force: 100 t
Distance between tie bars: 420 x 420 mm
Maximum platen dimensions: 570 x 570 mm
Ejector: hydraulic
Clamping system: hydraulic
Control system:
SELOGICA - touchscreen with Polish language option
Additional equipment:
Excellent technical condition
Operating time: 20,669 h in automatic mode
Hybrid machine - energy-efficient and very quiet
Euromap 67
Robot interface
2 air valves
2 hydraulic core pulls
8-zone hot runner control
Reinforced bimetallic injection unit
Main machine motor - inverter-controlled servomotor for reduced energy consumption
Proportional valve on the injection unit - precise injection
Outputs for pneumatic nozzle shut-off and colour dosing unit
Arburg Multilift Select 6 kg quer robot
Year of manufacture: 11.2016
5-axis robot: X, Y and Z axes driven by electric servomotors, pneumatic C axis, rotary B axis
Axis travel: X - 400 mm, Y - 600 mm, Z - 1000 mm
Robot base with adapter, belt conveyor and safety enclosure
The robot and belt conveyor are available at an additional cost
Dimensions:
Weight: 3,720 kg
Length x width x height: 4.30 x 1.63 x 2.07 m
Power supply:
Pump/motor power: 0 kW
Heater power: 0 kW
Total installed power: 0 kW
Price: on request
The machine can be demonstrated in operation in Łódź.
We offer all peripheral equipment required to create a complete production line, as well as machine tools.
We are one of Europe's leading suppliers of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is located in our warehouses in Łódź.
Leasing is available. At the customer's request, we can assist with arranging simplified leasing through our partner leasing companies.
Free training in the operation of the selected machine
Free loading of the equipment after purchase
