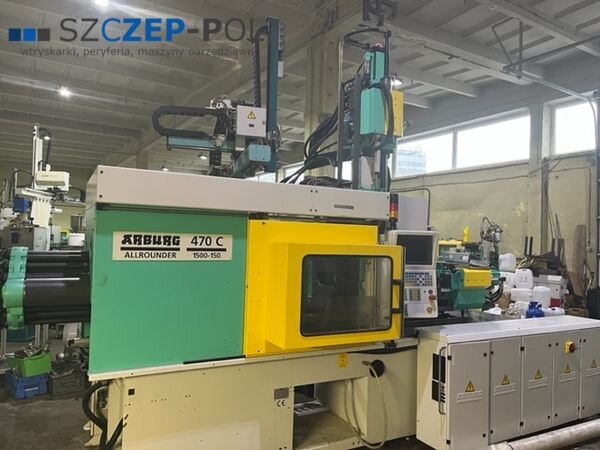

ARBURG 470C 1500-150/150 injection moulding machine - two injection units, 150 t, 2005

SZCZEP-POL

Sales of injection moulding machines and peripheral equipment

Type: ARBURG 470C 1500-150/150 - two-injection-unit machine in very good technical condition

Year of manufacture: 2005

Injection unit:

Screw diameter: 25 mm

Shot weight: 49 g

Injection pressure: 2500 bar

Injection volume: 54 cm³

Clamping unit:

Clamping force: 150 t

Distance between tie bars: 470 x 470 mm

Maximum platen dimensions: 685 x 685 mm

Ejector: hydraulic

Clamping system: hydraulic

Control system:

SELOGICA - Polish language option available

Additional equipment:

Two injection units

Euromap 67

Robot interface

1 air valve

1 hydraulic core pull

Reinforced bimetallic injection unit

Proportional valve in the injection system - precise injection

Plasticising unit type: Vario - allows the injection unit to be used for applications including side injection

Parallel movements

Vertical injection unit - screw diameter 25 mm (49 g/PS)

The screws in both injection units can be replaced with screws measuring 30 or 35 mm in diameter

Dimensions and weight:

Weight: 5700 kg

Power supply:

Pump/motor: 30 kW

Heaters: 2 x 9.4 kW

Total power: 48.8 kW

Price: on request

A video of the technical tests performed on the selected machine can be viewed, or customers may participate in live technical trials at our company in Łódź.
All injection moulding machines and peripheral equipment are commissioned by our service technicians before sale.
All equipment offered by our company is located in our warehouses in Łódź.
We are a leading European supplier of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.

Leasing is available. At the customer's request, we can assist with arranging a simplified leasing procedure through our partner leasing companies.

Free training in the operation of the selected machine

Free loading of the equipment after purchase
