Poland , 91-212 Łódź, Wersalska 54ARBURG 470S 1100-400 injection moulding machine with WITTMANN W711 robot, 2008, 110 t
No. 138449
- Type of offer:
- Selling
- Condition:
- Second hand
- Year:
- 2008
- Manufacturer:
- Arburg
- Valid for:
- 55 days
-
- User:
- SZCZEPPOL
- Company:
- Szczep-pol
- Name and surname:
- Arek Szczepański
- Contact:
SZCZEP-POL
Supplier of injection moulding machines and peripheral equipment

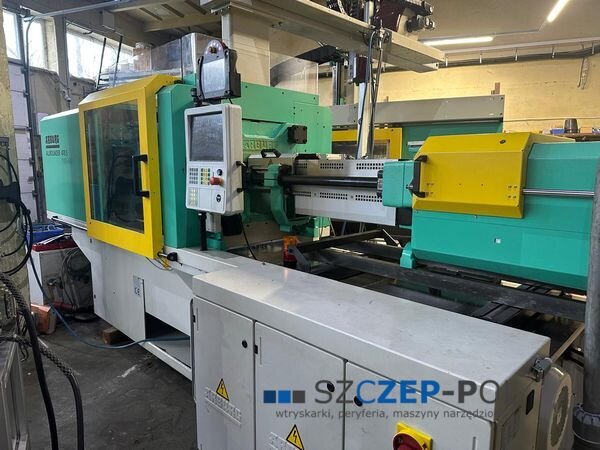

Type: ARBURG 470S 1100-400 injection moulding machine with WITTMANN W711 robot
Year of manufacture: 2008
Injection unit:
Screw diameter: 40 mm
Shot weight: 184 g
Injection pressure: 2000 bar
Shot volume: 201 cm³
Clamping unit:
Clamping force: 110 t
Distance between tie bars: 470 x 470 mm
Maximum platen dimensions: 637 x 637 mm
Ejector: hydraulic
Clamping system: hydraulic
Control system:
SELOGICA - touchscreen with an option for a Polish-language interface
Additional equipment:
Euromap 67
Robot interface
2 air valves
1 hydraulic core pull
8 hot-runner control zones
Reinforced bimetallic injection unit
Moog proportional valve in the injection unit - precise injection
Belt conveyor integrated with the machine control system
Built-in sorting flap
Screw diameter can be changed
WITTMANN W711 robot:
Year of manufacture: 2008
4-axis robot: X, Y and Z axes driven by electric servomotors, pneumatic C axis
Axis travel: X - 420 mm, Y - 1200 mm, Z - 2000 mm
Touchscreen control panel
Robot base - adapter
The robot is available at an additional cost
Machine dimensions and weight:
Weight: 5200 kg
Length x width x height: 4.56 x 1.52 x 2.13 m
Power specifications:
Pump/motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request
We are a leading European supplier of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is located in our warehouses in Łódź, Poland.
All injection moulding machines and peripheral equipment are started and tested by our service technicians before sale.
A video of the technical tests of a selected machine can be provided, or customers may attend live technical trials at our company in Łódź.
Lease financing is available. At the customer's request, we can assist with arranging a simplified leasing procedure through our partner leasing companies.
Free training in the operation of the selected machine.
Free loading of the equipment after purchase.
