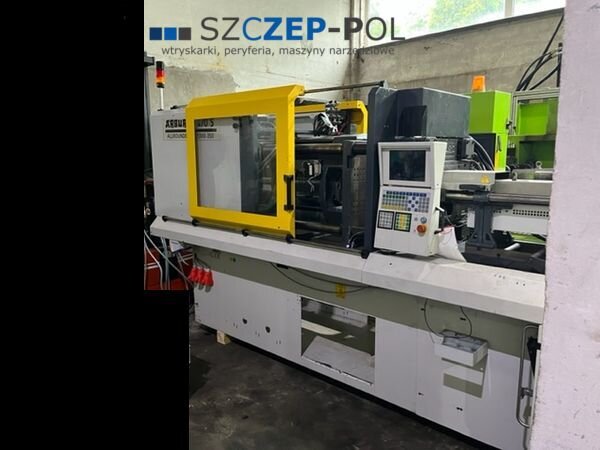

ARBURG 470S 1300-350 injection moulding machine, 130 t, year 2001

SZCZEP-POL
Supplier of injection moulding machines and peripheral equipment

Type: ARBURG 470S 1300-350
Year of manufacture: 2001

Injection unit:
Screw diameter: 35 mm
Shot weight: 117 g
Injection pressure: 2500 bar
Shot volume: 139 cm³

Clamping unit:
Clamping force: 130 t
Distance between tie bars: 470 x 470 mm
Maximum platen dimensions: 650 x 650 mm
Ejector: hydraulic
Clamping system: hydraulic

Control system:
SELOGICA - Polish-language translation available

Additional equipment:
EUROMAP 12
Robot interface
1 hydraulic core pull
6-zone hot runner control
Reinforced bimetallic injection unit
Proportional valve on the injection unit - precise injection
Kistler sensor - mould pressure monitoring
Plasticising unit type: Vario - allows the injection unit to be used, for example, for side injection
A new injection unit has been installed in the machine.

Dimensions and weight:
Weight: 5,100 kg
Length x width x height: 4.45 x 1.49 x 2.17 m

Power requirements:
Pump/motor: 22 kW
Heaters: 10.2 kW
Total power: 32.2 kW

Price: on request

We are a leading European supplier of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is stored in our warehouses in Łódź.
All injection moulding machines and peripheral equipment are started and tested by our service technicians before sale.
A video of the technical tests of a selected machine can be provided, or customers may attend live technical trials at our company in Łódź.

Leasing is available. At the customer's request, we can assist in arranging leasing through our partner leasing companies using a simplified procedure.
Free of charge: training in the operation of the selected machine
Free of charge: loading of the equipment after sale

SZCZEP-POL
Łódź
