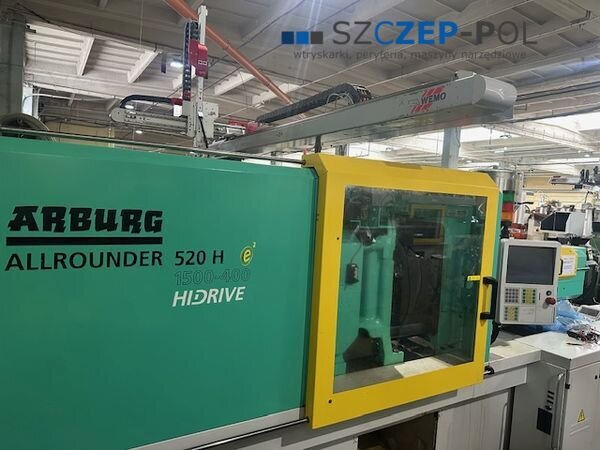

ARBURG 520H 1500-400 e² hybrid injection moulding machine

SZCZEP-POL
Sales of injection moulding machines and peripheral equipment
Type: ARBURG 520H 1500-400 e² - hybrid machine
Year of manufacture: 2011

Injection unit:
Screw diameter: 40 mm
Shot weight: 184 g
Injection pressure: 2,000 bar
Shot volume: 201 cm³

Clamping unit:
Clamping force: 150 t
Distance between tie bars: 520 x 520 mm
Maximum platen dimensions: 695 x 695 mm
Ejector: electric
Clamping system: toggle

Control system:
SELOGICA - touchscreen with Polish-language operation available

Additional equipment:
Hybrid drive - energy-efficient and very quiet operation
EUROMAP 67
Robot interface
Core pull control
Control for 8 hot-runner zones
Reinforced bimetallic injection unit
Main servo motor controlled by a frequency inverter - energy saving
Injection unit driven by a frequency-inverter-controlled servo motor
Hydraulic accumulator with a nitrogen cylinder for rapid operation
Central lubrication system
Parallel movements
PRIAMUS sensor - mould pressure monitoring

Dimensions:
Weight: 6,010 kg
Length x width x height: 4.67 x 1.56 x 2.21 m

Power:
Pump/motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We are a leading European supplier of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All offered equipment is located in our warehouses in Łódź, Poland.
All injection moulding machines and peripheral devices are commissioned by our service technicians before sale.
A video of the technical tests for the selected machine can be viewed, or customers may attend live technical trials at our company in Łódź.
We can assist with arranging simplified leasing through leasing companies that cooperate with us.
Free training in the operation of the selected machine.
Free loading of equipment after sale.

SZCZEP-POL
Łódź, Poland
