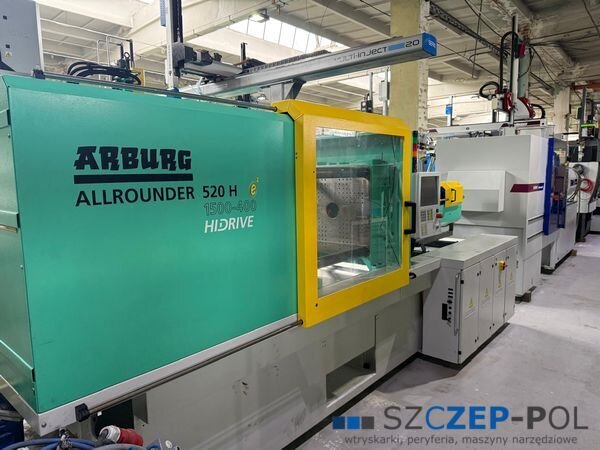

ARBURG 520H 1500-400 e² injection moulding machine, 150 t, 2011

SZCZEP-POL
Sales of injection moulding machines and peripheral equipment
Type: ARBURG 520H 1500-400 e², hybrid machine
Year of manufacture: 2011

Injection unit:
Screw diameter: 40 mm
Shot weight: 184 g
Injection pressure: 2000 bar
Shot volume: 201 cm³

Clamping unit:
Clamping force: 150 t
Distance between tie bars: 520 x 520 mm
Maximum platen dimensions: 695 x 695 mm
Ejector: electric
Clamping system: toggle

Control system:
SELOGICA - touchscreen with an option for a Polish-language interface

Additional equipment:
Hybrid drive - energy-efficient and very quiet
EUROMAP 67
Robot interface
Core pull control
8-zone hot runner control
Reinforced bimetallic injection unit
Main machine motor - inverter-controlled servomotor for improved energy efficiency
Injection unit driven by an inverter-controlled servomotor
Hydraulic accumulator with nitrogen cylinder - nitrogen charging for fast operation
Central lubrication system
Parallel movements
Priamus sensor - mould pressure monitoring

Dimensions:
Weight: 6010 kg
Length x width x height: 4.67 x 1.56 x 2.21 m

Power ratings:
Pump/motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We are one of Europe's leading suppliers of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is located in our warehouses in Łódź, Poland.
All injection moulding machines and peripheral equipment are commissioned by our service technicians before sale.
A video of the technical tests of the selected machine can be viewed, or customers may participate in live technical trials at our facility in Łódź.
At the customer's request, we can assist with arranging leasing under a simplified procedure through our partner leasing companies.
Free of charge: training in the operation of the selected machine
Free of charge: loading of the equipment after sale
