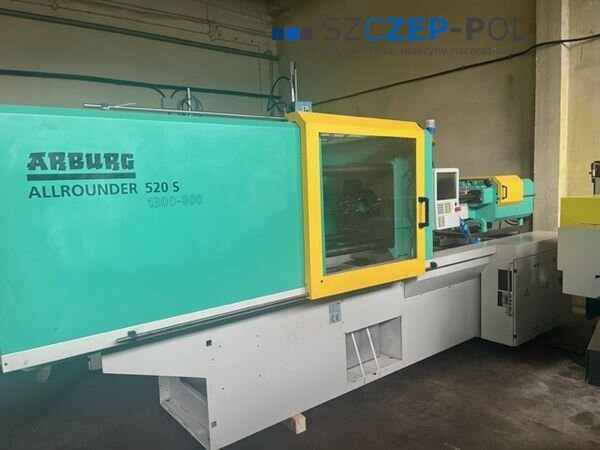

ARBURG 520S 1300-800 injection moulding machine, 130 t, 2008

SZCZEP-POL
Sales of injection moulding machines and peripheral equipment

Type: ARBURG 520S 1300-800
Technical condition: very good
Clamping force: 130 t
Year of manufacture: 2008
Location: Łódź, Poland

Injection unit:
Screw diameter: 50 mm
Shot weight: 359 g
Injection pressure: 2000 bar
Shot volume: 392 cm³

Clamping unit:
Clamping force: 130 t
Distance between tie bars: 520 x 520 mm
Maximum platen dimensions: 695 x 695 mm
Ejector: hydraulic
Clamping system: hydraulic

Control system:
SELOGICA - touchscreen with an optional Polish-language interface

Additional equipment:
EUROMAP 67
EUROMAP 12
Robot interface
2 air valves
Reinforced bimetallic injection unit, resistant to abrasion and corrosion
The machine was serviced by an authorised ARBURG service centre in Germany

Dimensions and weight:
Weight: 6,450 kg
Length x width x height: 4.81 x 1.57 x 2.19 m

Power:
Pump/motor: 30 kW
Price: on request

We are one of Europe's leading suppliers of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.

All equipment offered by our company is located in our warehouses in Łódź, Poland. Injection moulding machines and peripheral equipment are tested by our service technicians before sale.

A video of the technical tests of the selected machine can be provided. Customers may also attend live technical trials at our facility in Łódź.

Leasing is available. At the customer's request, we can assist with arranging a simplified leasing process through our partner leasing companies.

Free training in the operation of the selected machine.
Free loading of the equipment after the sale.
