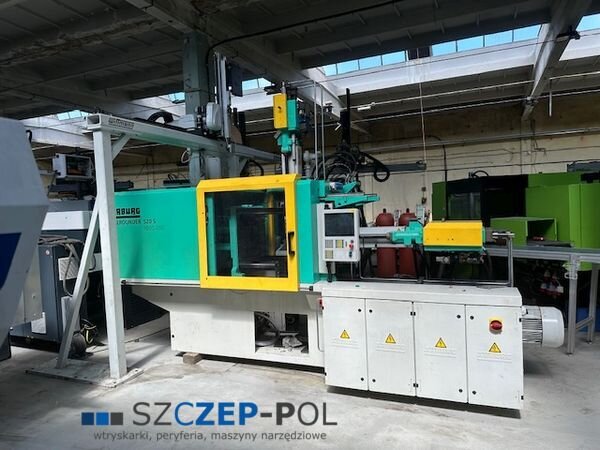

Arburg 520S 1600-290/100 injection moulding machine with Wittmann W823 robot - 2011

SZCZEP-POL
Sales of injection moulding machines and peripheral equipment
Type: Arburg 520S 1600-290/100 - production line with Wittmann W823 robot
Automatic operating hours: 19,957 h
Year of manufacture: 2011

Injection unit:
Screw diameter: 35 mm
Shot weight: 132 g
Injection pressure: 2,000 bar
Shot volume: 144 cm³

Clamping unit:
Clamping force: 160 t
Tie-bar spacing: 520 x 520 mm
Maximum platen dimensions: 695 x 695 mm
Ejector: hydraulic
Clamping system: hydraulic

Control system:
SELOGICA - touchscreen with an option for a Polish-language interface

Additional equipment:
Two-component injection moulding machine with a rotary table and robot
Very good technical condition
Automatic operating hours: 19,957 h
Total operating hours: 27,945 h
Euromap 67
Robot interface
3 air valves
2 hydraulic core-pull systems controlled by proportional valves
Reinforced bimetallic injection units
Proportional valves on the injection units for precise injection
Two accumulators with nitrogen cylinders for fast machine operation
Parallel movements
Vertical injection unit screw diameter: ⌀25 mm - 45 g/PS
Original rotary table
Rotary table available at an additional cost

Wittmann W823 robot:
Year of manufacture: 2015
5-axis robot: X, telescopic Y and Z axes driven by electric servo motors, plus C axis and A movement
Axis travel: X - 550 mm, Y - 1,400 mm, Z - 3,500 mm
Touchscreen control panel
Safety package
Robot base with adapter and safety enclosure
Robot available at an additional cost

Dimensions and weight:
Weight: 6,720 kg
Length x width x height: 4.41 x 1.84 x 3.20 m

Power requirements:
Pump/motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We are one of Europe's leading suppliers of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is stored in our warehouses in Łódź.
Before sale, all injection moulding machines and peripheral equipment are commissioned by our service technicians.
A video of the technical tests of a selected machine can be provided, or customers can attend live technical trials at our company in Łódź.

At the customer's request, we can assist with arranging a simplified leasing process through our partner leasing companies.
Free training in the operation of the selected machine.
Free loading of the equipment after sale.
