Poland , 91-212 Łódź, Wersalska 54ARBURG 520S 1600-400/170 e² injection moulding machine with GEIGER robot, 160 t, 2012
No. 138368
- Type of offer:
- Selling
- Condition:
- Second hand
- Year:
- 2012
- Manufacturer:
- Arburg
- Valid for:
- 55 days
-
- User:
- SZCZEPPOL
- Company:
- Szczep-pol
- Name and surname:
- Arek Szczepański
- Contact:
SZCZEP-POL
Sales of injection moulding machines and peripheral equipment

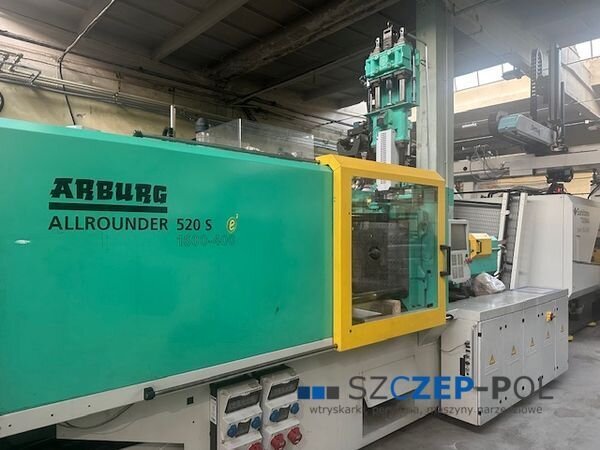

Type: ARBURG 520S 1600-400/170 e² with GEIGER robot
Year of manufacture: 2012
Injection unit:
Screw diameter: 35 mm
Shot weight: 141 g
Injection pressure: 2500 bar
Shot volume: 154 cm³
Clamping unit:
Clamping force: 160 t
Tie-bar spacing: 520 x 520 mm
Maximum platen dimensions: 695 x 695 mm
Ejector: hydraulic
Clamping system: hydraulic
Control system:
SELOGICA - touchscreen with Polish language option
Additional equipment:
Two-component injection moulding machine with rotary table and GEIGER robot
Very good technical condition
Hybrid machine - energy-efficient and very quiet
EUROMAP 67
Robot interface
4 air valves
5 hydraulic core pulls
12 hot-runner control zones
Bimetallic injection units
Two accumulators with nitrogen cylinders - nitrogen charging for fast operation
Parallel movements
Screw diameter in the vertical unit: ⌀30 mm - 77 g/PS
Integrated ARBURG belt conveyor and sorting flap
Original, high-precision WEBER rotary table with electric drive
Rotary table and robot available at an additional cost
Dimensions:
Weight: 8140 kg
Length x width x height: 4.81 x 1.84 x 3.45 m
Power supply:
Pump/motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: upon request
We are a leading European supplier of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is located in our warehouses in Łódź.
All injection moulding machines and peripheral equipment are commissioned by our service technicians before sale.
A video of the technical tests of a selected machine can be provided, or customers may participate in live technical trials at our company in Łódź.
Leasing is available. At the customer's request, we can assist in arranging a simplified leasing process through our cooperating leasing companies.
Free training in the operation of the selected machine.
Free loading of the equipment after sale.
