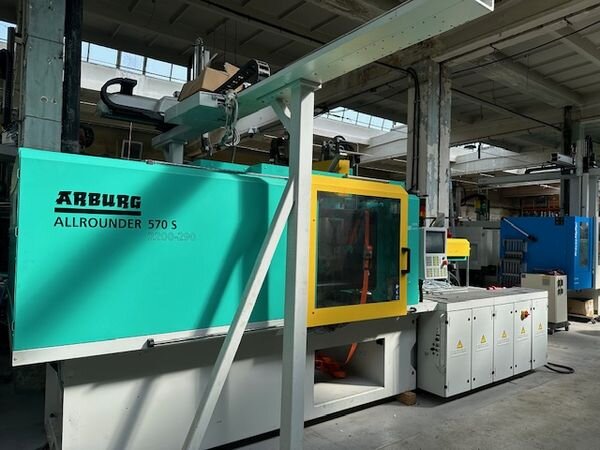

Arburg 570S 2200-290/100/100 injection moulding machine - production line with Wittmann W823 robot

SZCZEP-POL
Sales of injection moulding machines and peripheral equipment

Type: Arburg 570S 2200-290/100/100 - production line with Wittmann W823 robot
Operating time: 20,499 h in automatic mode
Year of manufacture: 2016

Injection unit:
Screw diameter: 35 mm
Shot weight: 132 g
Injection pressure: 2,000 bar
Shot volume: 144 cm³

Clamping unit:
Clamping force: 220 t
Distance between tie bars: 570 x 570 mm
Maximum platen dimensions: 795 x 795 mm
Ejector: hydraulic
Clamping system: hydraulic

Control system:
SELOGICA - touchscreen with Polish language option

Additional equipment:
High-speed, 3-component injection moulding machine
Very good technical condition
Operating time: 20,499 h in automatic mode
Euromap 67
Robot interface
6 air valves
Hot runner control
4 hydraulic needle-type core pulls controlled by proportional valves
Reinforced bimetallic injection unit
Proportional valve in the injection unit - precise injection
Two accumulators with nitrogen cylinders - nitrogen boost for high-speed operation
Parallel movements
Screw diameter in the vertical unit: ⌀25 mm - 45 g/PS
Screw diameter in the side unit: ⌀25 mm - 45 g/PS

Wittmann W823 robot
Year of manufacture: 2015
5-axis robot: X, telescopic Y and Z axes driven by electric servomotors, C axis and A movement
Axis travel: X - 550 mm, Y - 1,400 mm, Z - 3,500 mm
Touchscreen control panel
Safety package
Robot base (adapter), belt conveyor and safety enclosure
Robot and belt conveyor available at an additional cost

Dimensions:
Weight: 10,830 kg
Length x width x height: 5.53 x 1.77 x 3.29 m

Power ratings:
Pump/motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We are a leading European supplier of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All offered equipment is located in our warehouses in Łódź, Poland.
All injection moulding machines and peripheral equipment are commissioned by our service technicians before sale.
A video of technical tests for a selected machine can be viewed, or customers may attend live technical trials at our company in Łódź.

Leasing is available. At the customer's request, we can assist with simplified leasing arrangements through our partner leasing companies.
Free training in the operation of the selected machine
Free loading of the equipment after sale
