Poland , 91-212 Łódź, Wersalska 54ARBURG 630S 2500-1300 ECO injection moulding machine with SEPRO SDR 22S robot, 250 t
No. 138371
- Type of offer:
- Selling
- Condition:
- Second hand
- Year:
- 2008
- Manufacturer:
- Arburg
- Valid for:
- 55 days
-
- User:
- SZCZEPPOL
- Company:
- Szczep-pol
- Name and surname:
- Arek Szczepański
- Contact:
SZCZEP-POL
Supplier of injection moulding machines and peripheral equipment

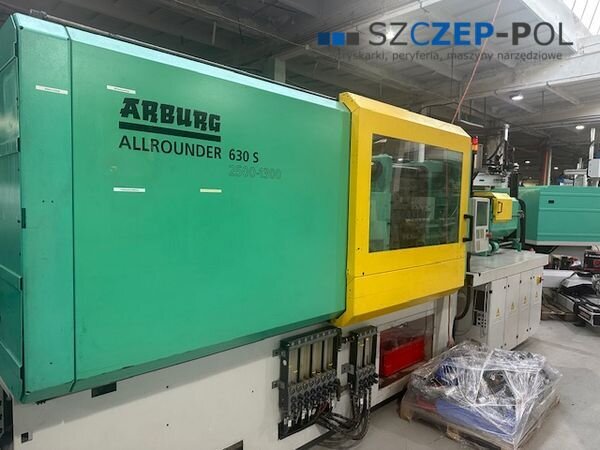

Type: ARBURG 630S 2500-1300 ECO injection moulding machine with SEPRO Industrial Robot SDR 22S
Year of manufacture: 2008
Injection unit:
Screw diameter: 55 mm
Shot weight: 521 g
Injection pressure: 2380 bar
Shot volume: 570 cm³
Clamping unit:
Clamping force: 250 t
Tie-bar spacing: 630 x 630 mm
Maximum platen dimensions: 900 x 900 mm
Ejector: hydraulic
Clamping system: hydraulic
Control system:
SELOGICA - touchscreen with an optional Polish-language interface
Additional equipment:
EUROMAP 67
Robot interface
4 air valves
2 hydraulic core pulls
Control for 15 hot-runner zones
Reinforced bimetallic injection unit
The machine is equipped with a hydraulic accumulator and nitrogen cylinder for fast operation.
ECO - minimum mould-height adjustment system
SEPRO Industrial Robot SDR 22S
Year of manufacture: 2016
4-axis robot: X, Y and Z axes driven by electric servo motors, pneumatic C axis
Axis travel: X - 1500 mm, Y - 2200 mm, Z - 800 mm
2 vacuum circuits
2 gripper circuits
Touchscreen control panel
Robot base (adapter), safety cage and belt conveyor
The robot and belt conveyor are available at an additional cost.
Dimensions:
Weight: 12,510 kg
Length x width x height: 6.57 x 1.76 x 2.46 m
Power:
Pump/motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request
We are one of Europe's leading suppliers of used plastics-processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is located in our warehouses in Łódź, Poland.
Before sale, all injection moulding machines and peripheral equipment are commissioned by our service technicians.
A video of the technical tests for a selected machine can be viewed, or customers may attend live technical trials at our company in Łódź.
At the customer's request, we can assist with arranging leasing under a simplified procedure through our partner leasing companies.
Free training in the operation of the selected machine
Free loading of the equipment after the sale
