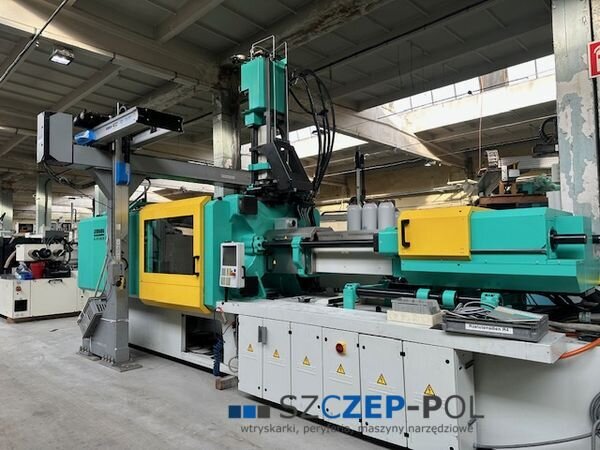

Arburg 820S 4000-2100/400 injection moulding machine, 400 t, 2012

SZCZEP-POL
Supplier of injection moulding machines and peripheral equipment

Type: Arburg 820S 4000-2100/400
Production line with a Sepro Industrial Robot SR S5-35 S3 Trans
Operating time: 42,014 h in automatic mode
Year of manufacture: 2012

Injection unit:
Screw diameter: 60 mm
Shot weight: 723 g
Injection pressure: 2,500 bar
Shot volume: 792 cm³

Clamping unit:
Clamping force: 400 t
Tie-bar spacing: 820 x 820 mm
Maximum platen dimensions: 1,171 x 1,171 mm
Ejector: hydraulic
Clamping system: hydraulic

Control system:
SELOGICA - touchscreen with an optional Polish-language interface

Additional equipment:
Two-component injection moulding machine with a rotary table and robot
Very good technical condition
Operating time: 42,014 h in automatic mode
Euromap 67
Robot interface
6 air valves
4 pairs of hydraulic needle-type core pulls controlled by a proportional valve
24-zone hot runner control
Reinforced bimetallic injection units
Proportional valve on the vertical injection unit - precise injection
The machine is equipped with six accumulators with nitrogen cylinders for high-speed operation
Parallel movements
Automatic mould height adjustment
Screw diameter in the vertical injection unit: ⌀40 mm - 184 g/PS
Kistler sensor - mould pressure monitoring
Original Weber rotary table - a precise unit electrically driven by a servo motor controlled via a frequency inverter
Rotary table diameter: 1,200 mm
The rotary table is available at an additional cost

Sepro Industrial Robot SR S5-35 S3 Trans
Year of manufacture: 2012
3-axis robot: X, Y and Z axes, including a telescopic Z axis, driven by electric servo motors
Approximate axis travel: X - 5,000 mm, Y - 1,400 mm, Z - 2,000 mm
Automatic axis lubrication
Touchscreen control panel
Safety package
Robot base with adapter and safety enclosure
The robot is available at an additional cost

Dimensions:
Weight: 21,000 kg
Length x width x height: 8.00 x 2.32 x 4.21 m

Power:
Pump/motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request

We are a leading European supplier of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is located in our warehouses in Łódź, Poland.
All injection moulding machines and peripheral equipment are commissioned by our service technicians before sale.
A video of the technical tests of the selected machine can be provided, or customers may attend live technical trials at our facility in Łódź.

Leasing is available. At the customer's request, we can assist in arranging simplified leasing through our partner leasing companies.
Free training in the operation of the selected machine
Free loading of the equipment after sale
