Battenfeld HM 10000 P2/9200 B4 Injection Molding Machine
No. 133051
- Type of offer:
- Selling
- Available quantity:
- 1 pc
- Condition:
- Second hand
- Year:
- 2004
- Manufacturer:
- Battenfeld
- Clamping force [kN]:
- 10000
- Valid for:
- 1 day
-
- User:
- technikplast
- Company:
- Technikplast Michał Wiśniewski
- Name and surname:
- Michał Wiśniewski
- Contact:

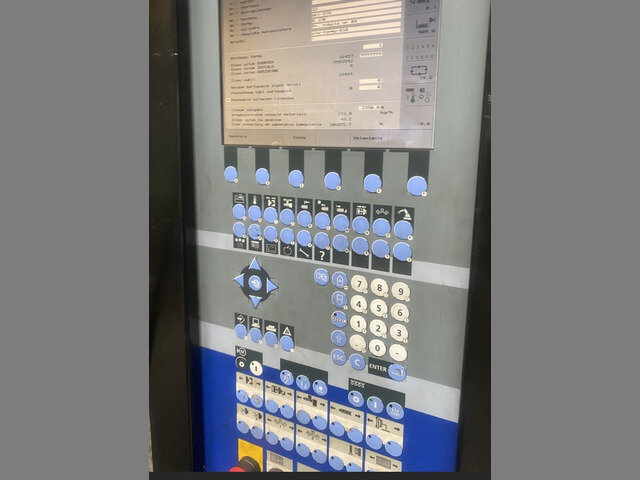

Used Battenfeld HM 10000 P2/9200 B4 injection molding machine.
Year of manufacture: 2004. Inspection possible.
Clamping force: 10,000 kN.
Opening stroke: 1300 mm.
Mold height min./max.: 500-1050 mm.
Daylight between platens: 2350 mm.
Distance between tie bars: 1610 x 1330 mm.
Screw diameter: 100 mm.
Injection pressure: 1613 bar.
Shot weight: 4 kg for PP 5 MFI.
Plasticizing speed: 190 min-1.
2 x hydraulic core pull.
2 x pneumatic valve.
8 x hot runner (mold heating).
Euromap 67 for robot.
