Battenfeld HM 8000 P2/5400 B4 injection molding machine
No. 133052
- Type of offer:
- Selling
- Available quantity:
- 1 pc
- Condition:
- Second hand
- Year:
- 2004
- Manufacturer:
- Battenfeld
- Clamping force [kN]:
- 8000
- Valid for:
- 1 day
-
- User:
- technikplast
- Company:
- Technikplast Michał Wiśniewski
- Name and surname:
- Michał Wiśniewski
- Contact:

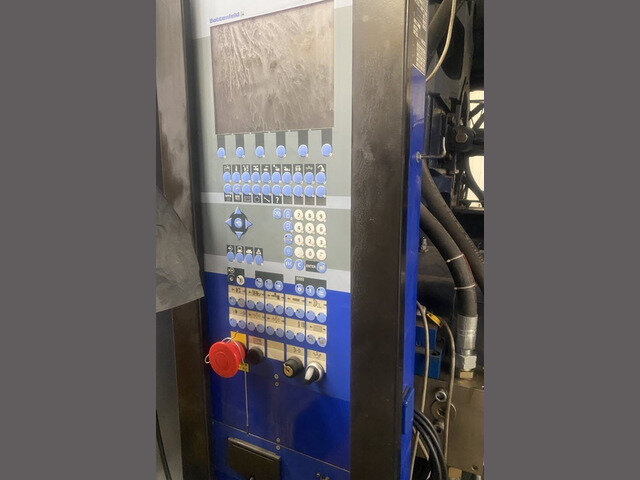

Used Battenfeld 8000/5400 B4 injection molding machine.
Trials are possible - the machine is in operation.
Clamping force: 8000 kN
Opening stroke: 1175 mm
Mold height min./max.: 450-950 mm
Clearance between platens: 2125 mm
Distance between tie bars: 1310 x 1210 mm
Screw diameter: 100 mm
Injection pressure: 1613 bar
Injection volume: 3338 ccm
PS shot weight: 3038 g
PE shot weight: 2370 g
Plasticizing speed: 190 min-1
2 x hydraulic core
2 x air valve
Euromap 67 for robot
