Engel VC 1350/200 Tech injection molding machine
No. 140153
- Type of offer:
- Selling
- Condition:
- Second hand
- Year:
- 2007
- Manufacturer:
- Engel
- Clamping force [kN]:
- 2000
- Valid for:
- 27 days
-
- User:
- europnet_
- Company:
- Europnet IMM sp. z o.o. sp.k
- Name and surname:
- Europnet IMM sp. z o.o. sp.k
- Contact:

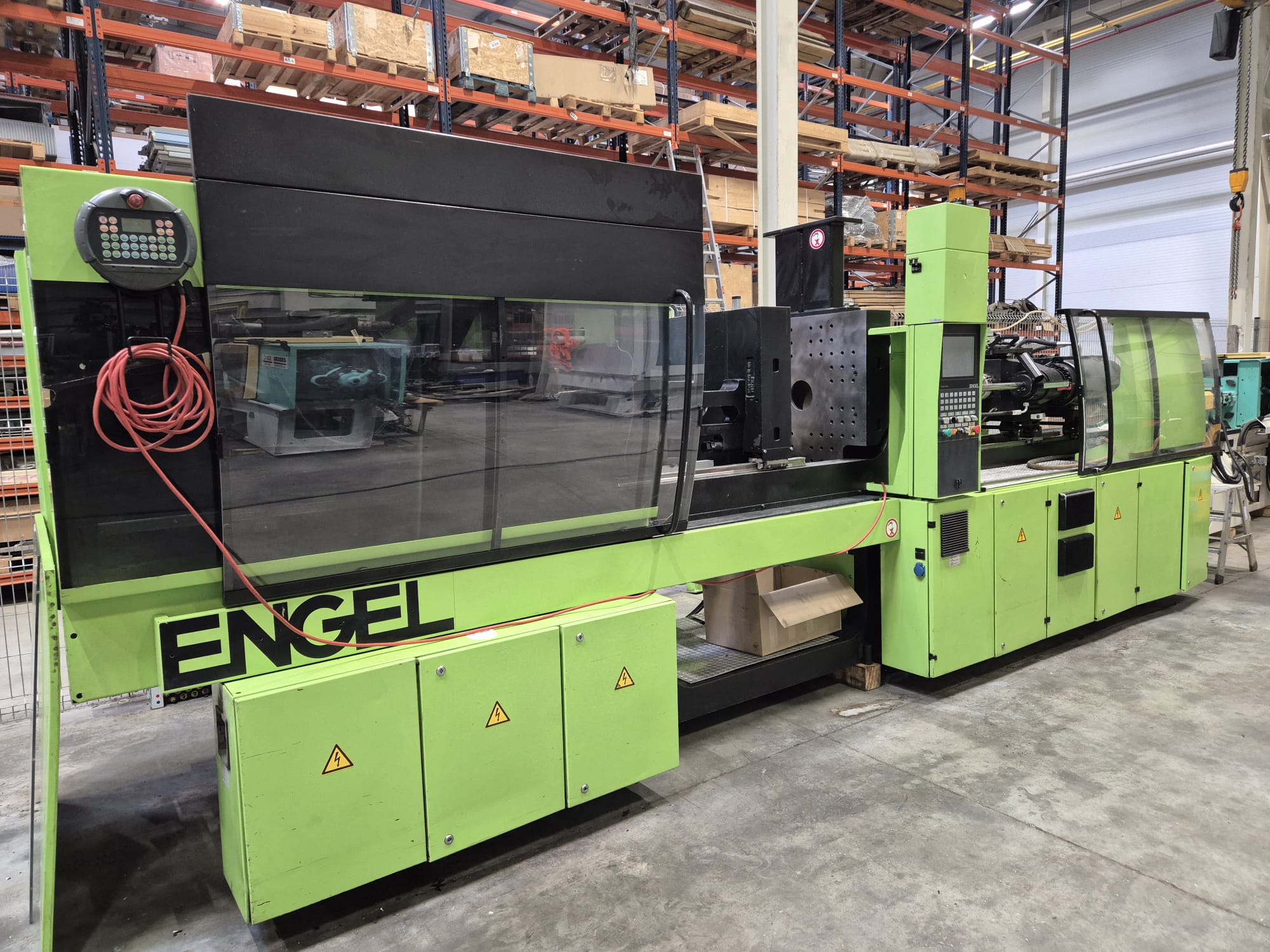

Engel VC 1350/200 Tech hydraulic injection molding machine.
Clamping force: 200 t
Year of manufacture: 2007
Shot weight: 562 g
Injection unit: .../1350
Screw diameter: 55 mm
Specific injection pressure: 2183 bar
Injection volume: 618 ccm
Shot weight: 562 g
Mold clamping unit: 200/...
Clamping force: 200 t
Platen dimensions: 860 x 570 mm
Ejector force: 80 kN
Mold height: 400 mm
Opening stroke: 750 mm
Maximum platen distance: 1150 mm
Ejector stroke: 180 mm
Weight: 14200 kg
Dimensions (L x W x H): 6.3 x 1.9 x 2.3 m
Year of manufacture: 2007
Equipment:
2 x hydraulic core puller on moving platen
Pneumatic valve
Robot
8 hot runner zones
8-section flow meter
This advertisement is for informational purposes only and does not constitute a commercial offer within the meaning of the Civil Code, but is solely an invitation to cooperate.
