Industrial Carton Feeder

Device description

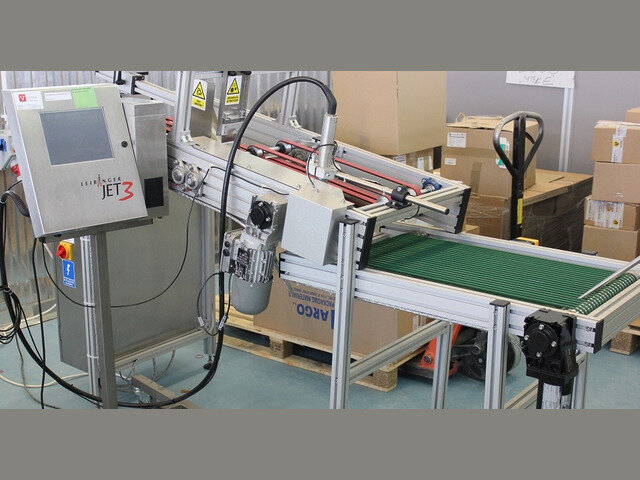

The device enables single cartons to be moved at a constant speed from a vertical loading magazine to a horizontal receiving magazine.

During movement, it is possible to print the batch number and/or expiry date on the carton using an INK-JET CIJ printer from any manufacturer. High-resolution printers based on HP technology, HSAJET® MiniTouch, MiniKey or HSAJET Micron can also be used.

Marked cartons are fed into the horizontal receiving magazine, from where they are collected by the operator.

The device is made of aluminium profiles and acid-resistant steel and meets the requirements of current European directives.

It can also be made as a mobile workstation on wheels.

Technical data

Length: 2300 mm
Height: 1300 mm
Width: approx. 850 mm
Application capacity: approx. 10 - 50,000 pcs/h
Carton dimensions: 50 - 450 mm
Travel speed: 5 - 50 m/min
Power supply: 1 ph 230 V or 3 ph 400 V

Standard equipment

Programmable counter for marked cartons.
Stepless speed control by means of frequency inverters.
Product counter sensor.
Speed synchronization module - encoder built into the gearbox motor drive.

Optional equipment

Mounting for a laser head or printer.
Mounting for a labelling system with X-Y adjustment.
