Industrial SED 02 Self-Adhesive Label Dispenser - Labeling Machine

Device description

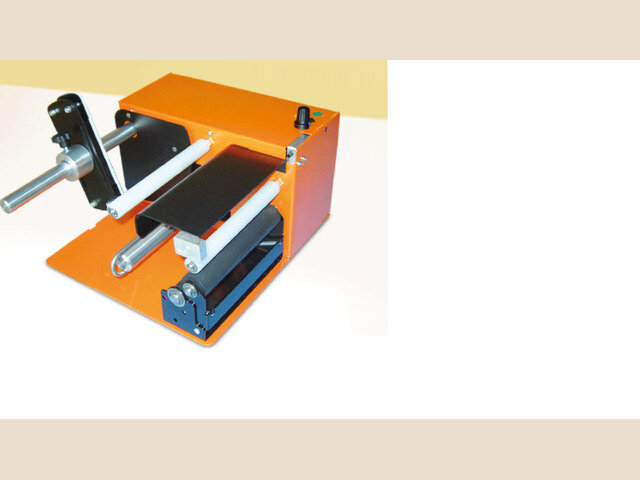

The SED 02 label dispenser, part of the "EASY SERIES" dispenser range, is a modern feeder for self-adhesive labels. It is suitable wherever fast and efficient application of self-adhesive labels to products is required. Modern technical solutions ensure that, despite its simple and intuitive operation, the device meets the high requirements of the industrial sector.

The feeder can operate in manual mode - by pressing a button - or in automatic mode. In automatic mode, after the label peeled from the backing is removed, the next label is automatically dispensed. The label feed length is adjusted using a potentiometer within a range of 5 mm to 170 mm.

The label feeder provides high flexibility and a favorable performance-to-price ratio. It is a simple solution for semi-automatic label application. The dispenser is available in two versions, depending on the maximum label width: SED 03 - up to 70 mm and SED 02 - up to 150 mm.

Technical parameters

Label width: up to 70 mm (SED 03), up to 150 mm (SED 02)

Outer roll diameter: up to 200 mm

Inner roll diameter: from 20 mm, with the option to install 40 mm, 76 mm or larger spacer rings.

Power supply: 110/230 V
