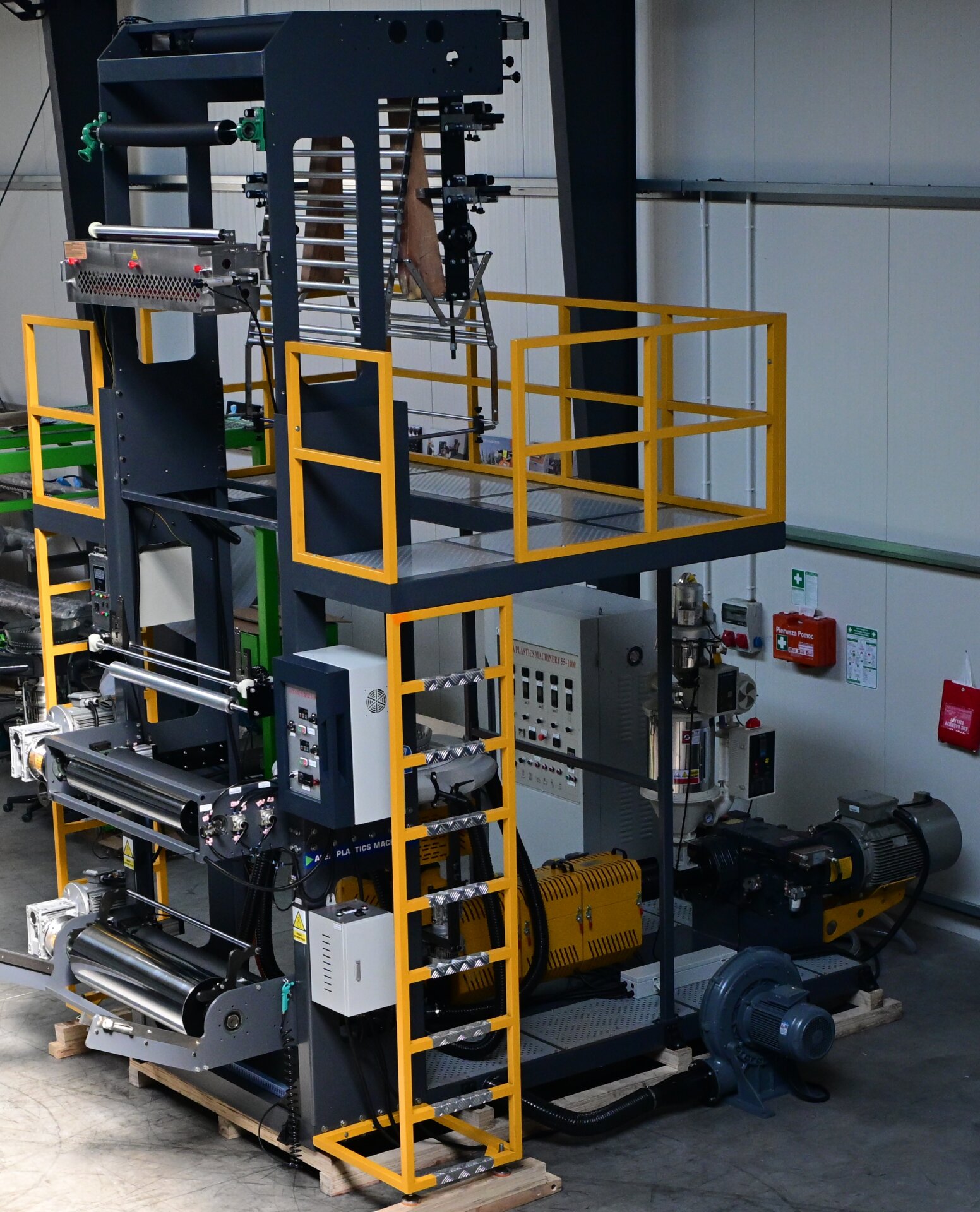

LDPE Film Extruder 55-1000-1

Complete extruder for LDPE film production.

Collection in Poland, available from stock.

Delivery, installation and connection included in the price.

Screw: 55 mm, L/D 31, barrier type.

Gear motor with heat exchanger and forced lubrication.

Innomotics flange motor, 30 kW, with external cooling.

Delta inverters.

Roller width: 1000 mm.

Single-arm winder, chrome-plated shaft, pressure roller - rubber-coated shaft.

Side knives: 2 pcs. with compressed air blow-off.

Driven intermediate rollers, chrome-plated shaft, pressure roller - rubber-coated shaft.

Upper haul-off rollers and a set of embossing rollers.

LDPE die head 180 mm, rotating.

Operating output: 50-80 kg/h; maximum extruder output: 110 kg/h.

Additional equipment included in the price:

Interchangeable LDPE 100 mm die lip.

Interchangeable LDPE 100 flange inserts.

Pneumatic air shafts: 3 pcs., for 76 mm cores.

Double-sided corona treater, 2.5 kVA.

Granulate dryer.

Vacuum granulate loader.

Main dimensions:

Length: 560 cm.

Width at ladders: 310 cm.

Width in the remaining section: 160 cm.

Height: 590 cm.

Analog control cabinet without PLC, very easy to service and operate.
