New SSF 32 injection molding machine - clamping force 320 kN, servo
No. 122932
- Type of offer:
- Selling
- Available quantity:
- 2 pc
- Condition:
- New
- Year:
- 2020
- Manufacturer:
- Others
- Clamping force [kN]:
- 320
- Total power installed [kW]:
- 7.1
- Valid for:
- 1 day
-
- User:
- technikplast
- Company:
- Technikplast Michał Wiśniewski
- Name and surname:
- Michał Wiśniewski
- Contact:
Available immediately.
Two new SSF 320 injection molding machines.
Options:
2 x core pull
4 x air blow

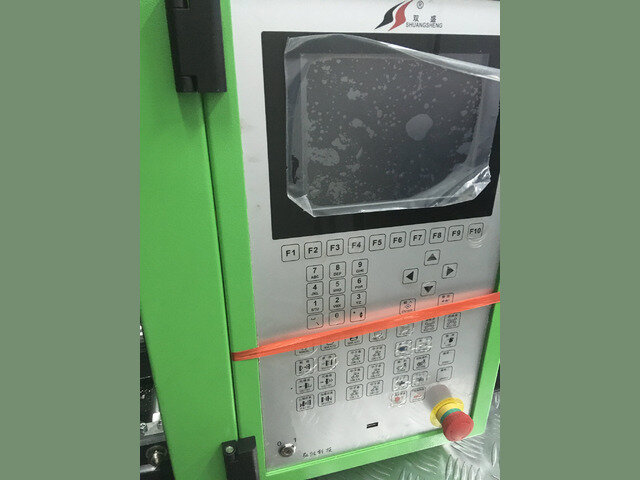

Control system - Techmation
Languages - PL, EN and others
Technical data:
Clamping force - 32 tons
Opening stroke - 155 mm
Distance between tie bars - 245 x 195 mm
Minimum mold height - 80 mm
Maximum mold height - 260 mm
Ejector force - 13 kN
Ejector stroke - 40 mm
Screw diameter - 22 mm
Shot weight - 27 g
L/D ratio - 30
Injection pressure - 185 bar
Injection capacity - 25 g/s
Screw speed - 190 rpm
Motor power - 5.5 kW
Machine dimensions - 2.8 x 0.86 x 1.35 m
Maximum system pressure - 140 bar
Heater power - 2.6 kW
Oil capacity - 85 l
Weight - 1 t
