Poland , 91-212 Łódź, Wersalska 54Sumitomo Demag Systec 100/420-310 injection moulding machine with Sepro SR SDR11 S3 Trans robot
No. 138448
- Type of offer:
- Selling
- Condition:
- Second hand
- Year:
- 2013
- Manufacturer:
- Krauss Maffei
- Valid for:
- 55 days
-
- User:
- SZCZEPPOL
- Company:
- Szczep-pol
- Name and surname:
- Arek Szczepański
- Contact:
SZCZEP-POL
Sales of injection moulding machines and peripheral equipment

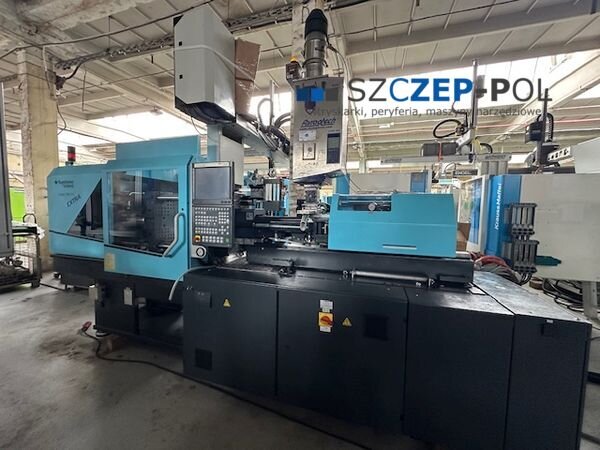

Type: Sumitomo Demag Systec 100/420-310 with Sepro SR SDR11 S3 TRANS robot
Year of manufacture: 2013
Injection unit:
Screw diameter: 35 mm
Shot weight: 149 g
Injection pressure: 2024 bar
Shot volume: 168 cm³
Clamping unit:
Clamping force: 100 t
Tie-bar spacing: 420 x 420 mm
Maximum platen dimensions: 600 x 600 mm
Ejector: hydraulic
Clamping system: hydraulic
Control system:
NC5 - Polish language option available
Additional equipment:
Hybrid machine - energy-efficient, high-speed and very quiet
Operating hours: approximately 38,000 h in automatic mode
Robot interface
2 air valves
1 hydraulic core pull
Reinforced bimetallic injection unit
Main machine motor - inverter-controlled servomotor for reduced energy consumption
Built-in printer
The machine has been regularly serviced by an authorised Sumitomo Demag service centre
Sepro SR SDR11 S3 TRANS robot
Year of manufacture: 2013
5-axis robot - X, Y and Z axes driven by electric servomotors; pneumatic A and C rotary axes
Touchscreen control panel
Safety package
Robot base - adapter and safety enclosure
The robot is available at an additional cost
Dimensions:
Weight: 4,400 kg
Length x width x height: 4.20 x 1.40 x 2.00 m
Power ratings:
Pump/motor: 0 kW
Heaters: 0 kW
Total: 0 kW
Price: on request
We are one of Europe's leading suppliers of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is located in our warehouses in Łódź, Poland.
All injection moulding machines and peripheral equipment are commissioned by our service technicians before sale.
A video of the technical tests of a selected machine can be provided, or customers may attend live technical trials at our facility in Łódź.
Leasing is available. At the customer's request, we can assist in arranging a simplified leasing procedure through our partner leasing companies.
Free training in the operation of the selected machine
Free loading of the equipment after sale
