Sumitomo Demag Systec 210/580-430 injection moulding machine, 210 t, 2014

SZCZEP-POL
Sales of injection moulding machines and peripheral equipment

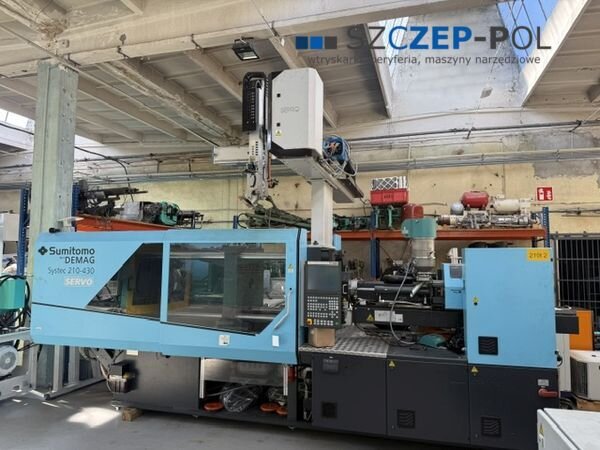

Type: Sumitomo Demag Systec 210/580-430 with Sepro Success 22 robot
Machine type: hybrid
Year of manufacture: 2014
Location: Łódź, Poland

Injection unit:
Screw diameter: 35 mm
Shot weight: 153 g
Injection pressure: 2640 bar
Shot volume: 168 cm³

Clamping unit:
Clamping force: 210 t
Distance between tie bars: 580 x 580 mm
Maximum platen dimensions: 860 x 860 mm
Ejector: hydraulic
Clamping system: toggle

Control system:
NC5 with an option for a Polish-language interface

Additional equipment and features:
Very good technical condition
Hybrid machine: energy-efficient, high-speed and quiet
Operating hours: approximately 30,000 h in automatic mode
EUROMAP 67
Robot interface
9 air valves
1 hydraulic needle-type core pull controlled by a proportional valve
4 hydraulic core pulls
5 pneumatic core pulls
8 hot-runner control zones
Reinforced bimetallic injection unit
Main machine drive: inverter-controlled servomotor for reduced energy consumption
Proportional valve on the injection unit for precise injection
Parallel movements
Built-in printer

Dimensions:
Weight: 8,930 kg
Length x width x height: 6.02 x 1.76 x 2.15 m

Power supply:
Pump/motor: 0 kW
Heaters: 0 kW
Total installed power: 0 kW

Price: on request

The machine can be demonstrated in operation in Łódź, Poland.
Peripheral equipment required to create a complete production line and machine tools are also available.
We are one of Europe's leading suppliers of used plastics processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is stored at our warehouses in Łódź.

Leasing is available. At the customer's request, we can assist with arranging leasing through our partner leasing companies using a simplified procedure.
Free training in the operation of the selected machine.
Free loading of equipment after purchase.
