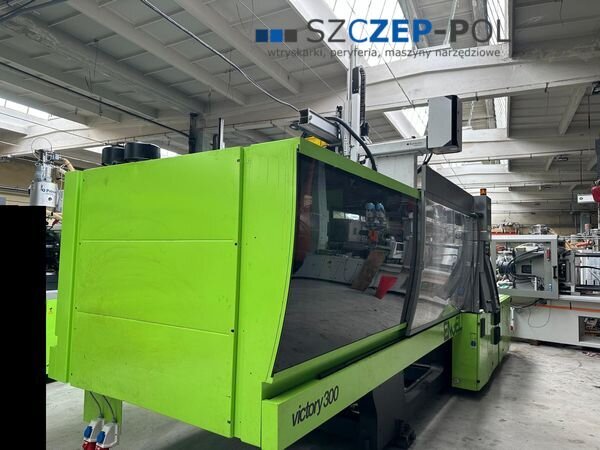

Engel Victory 1350/300 Tech Ecodrive injection moulding machine, 300 t, 2012

SZCZEP-POL
Supplier of injection moulding machines and peripheral equipment

Type: Engel Victory 1350/300 Tech Ecodrive with Sepro Industrial Robot SDR 22S
Hybrid machine
Operating hours: approx. 18,000 h in automatic mode
Year of manufacture: 2012
Location: Łódź, Poland

Injection unit:
Screw diameter: 60 mm
Shot weight: approx. 670 g
Injection pressure: 1,835 bar
Shot volume: 735 cm³

Clamping unit:
Clamping force: 300 t
Tie-bar-less machine
Maximum platen dimensions: 1,200 x 1,000 mm
Ejector: hydraulic
Clamping system: hydraulic

Control system:
CC 200 - touchscreen with an option for a Polish-language interface

Additional equipment:
Production line with Sepro Industrial Robot SDR 22S
Very good technical condition
Tie-bar-less hybrid machine - energy-efficient and very quiet
Operating hours: approx. 18,000 h in automatic mode
2 hydraulic core pulls
12 hot-runner control zones
Bimetallic injection unit - resistant to abrasion and corrosion
Main machine drive: inverter-controlled servo motor - energy-efficient solution
Proportional valve in the injection system - precise injection
Moving and fixed spacer platens are available for purchase. The platens are water-cooled, with M20 bolt holes.
Motan material-feeding system, including a colour dosing unit and material loader, available at an additional cost

Sepro Industrial Robot SDR 22S:
Year of manufacture: 2016
4-axis robot: X, Y and Z axes driven by electric servo motors, pneumatic C axis
Axis travel: X - 1,500 mm, Y - 2,200 mm, Z - 800 mm
2 vacuum circuits
2 grippers
Touchscreen control panel
Safety package
Robot base with adapter, belt conveyor and safety enclosure
Robot and belt conveyor available at an additional cost

Dimensions:
Weight: 19,900 kg
Length x width x height: 7.06 x 2.13 x 2.30 m

Power supply:
Pump/motor power: not specified
Heater power: not specified
Total installed power: not specified

Price: on request

The machine can be demonstrated in operation in Łódź, Poland.
We also offer peripheral equipment required to create a production line, as well as machine tools.
We supply used plastics-processing machinery, including injection moulding machines, peripheral equipment and machine tools.
All equipment offered by our company is located in our warehouses in Łódź.

Leasing is available. At the customer's request, we can assist with arranging simplified leasing through cooperating leasing companies.
Free training in the operation of the selected machine
Free loading of the equipment after the sale
