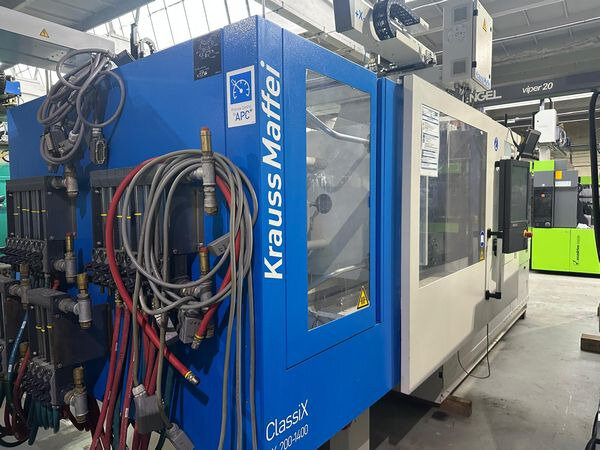

KRAUSS MAFFEI KM 200-1400 CX with KRAUSS MAFFEI LRX Easy Control 100 robot, 200 t, 2018

SZCZEP-POL
Sales of injection moulding machines and peripheral equipment
Type: KRAUSS MAFFEI KM 200-1400 CX with KRAUSS MAFFEI LRX Easy Control 100 robot
Operating time: 12,000 h in automatic mode
Year of manufacture: 2018

Injection unit:
Screw diameter: 60 mm
Shot weight: 617 g
Injection pressure: 2,007 bar
Shot volume: 679 cm³

Clamping unit:
Clamping force: 200 t
Distance between tie bars: 560 x 560 mm
Maximum platen dimensions: 915 x 915 mm
Ejector: hydraulic
Clamping system: hydraulic

Control system:
MC6 - touchscreen with Polish language option

Additional equipment:
Very good technical condition
EUROMAP 67
Robot interface
1 air valve with vacuum measurement
3 hydraulic core pulls
3 pneumatic core pulls
10-zone hot runner control
Reinforced bimetallic injection unit
Energy-efficient system with 3 variable-displacement hydraulic pumps
Parallel movements
Proportional valve in the injection system for precise injection
The machine was manufactured in December 2018 and delivered to the customer in 2019.

KRAUSS MAFFEI LRX Easy Control 100 robot:
Year of manufacture: 2019
4-axis robot: X, Y and Z axes driven by electric servo motors, C axis pneumatically driven
Touchscreen control panel
Safety package
Robot base with adapter, safety cage and conveyor belt
The robot and conveyor belt are available at an additional cost.

Dimensions:
Weight: 11,500 kg
Length x width x height: 6.10 x 2.20 x 2.30 m

Power specifications:
Pump/motor: 0 kW
Heaters: 0 kW
Total: 0 kW

Price: on request
